供应EB24R管板两用坡口机,便携坡口机

点击图片查看原图
品牌: 台湾AGP
单价: 面议
起订:
供货总量:
发货期限: 自买家付款之日起 3 天内发货
所在地: 上海
有效期至: 长期有效
最后更新: 2019-02-19 08:34
询价
公司基本资料信息


产品详细说明

EB24R管板两用坡口机带有一个AC感应电机,提供甚至切割速度,较长的耐久性,降低噪音和卓越的转矩特性。铣削角度是可调的逐步从0°至60°,最高土地宽度为21毫米。

EB24R管板两用坡口机的详细介绍
EB24R管板两用坡口机带有一个AC感应电机,提供甚至切割速度,较长的耐久性,降低噪音和卓越的转矩特性。铣削角度是可调的逐步从0°至60°,最高土地宽度为21毫米。具有重量仅为20.3公斤,它非常轻便,紧凑和坚固的设计便于操控,操作方便。这种极其灵活的倒角能够斜面管道,执行面临关闭和各种斜面的从零到60度。特殊的可转换表板可以仅仅通过重新定位导辊板坡口和管道坡口之间切换。所述管子坡口的位置是可调节的,以允许的范围内的管道尺寸为150至350毫米。如果较大规模是必需的,可选的表板可以让管道300至600mm。

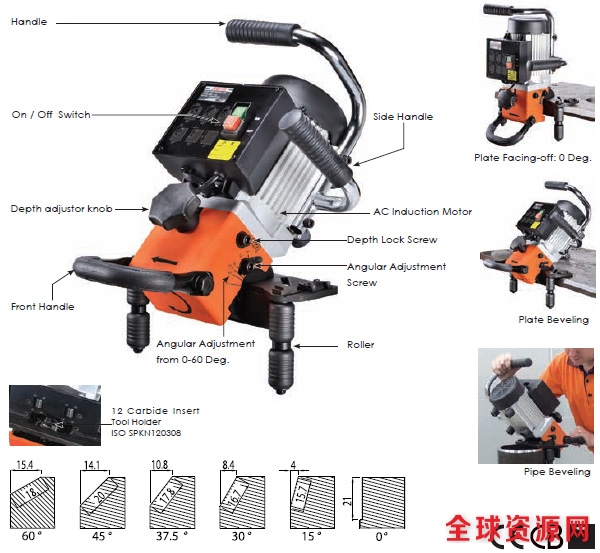

The Electric Beveler EB24R comes with an AC induction motor which offers even cutting speed, longer durability, lower noise and excellent torque characteristics. The milling angle is adjustable progressively from 0° to 60° with a maximum land width of 21 mm. With a weight only 20.3 kg, its very handy, compact and robust design allows for easy handling and convenient operation. This extremely versatile beveler is able to bevel pipes, perform facing off and a variety of bevels from zero to 60 deg. The special convertable table plate can switch between plate beveling and pipe beveling just by repositioning the guide rollers. The pipe beveling position is adjustable to allow a range of pipe sizes from 150 to 350mm. And if larger sizes are required, the optional table plate allows pipes 300 to 600mm.




Model EB24R
Power Input 1100W
Voltage 110-120V~ 50-60Hz, 220-240V~ 50-60Hz
No Load min-1 60Hz: 3600 , 50Hz: 3000
Angular Adjustment Angle Max. Bevel Width
60 Deg. 18mm
45 Deg. 20mm
37.5 Deg. 17.8mm
30 Deg. 16.7mm
15 Deg. 15.7mm
0 Deg. 21mm
Pipe beveling 150mm - 350mm (Standard), 300mm-600mm(Optional)
Dimensions 503mm x 350mm x 248mm
Net Weight 20.3kg (44.75 Lbs)
