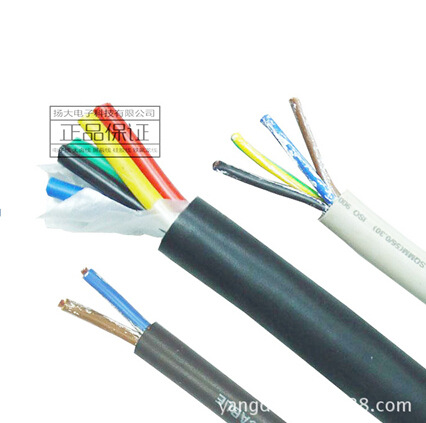

现货批发ul电子线2851 多芯缠绕屏蔽线 控制信号屏蔽线
| Product Description: | APPlications: | ||||||||||||
| ■Tinned ,annealed,stranded or solid copper conductor. | ■For internal wiring of electronic equipment, | ||||||||||||
| ■PVC insulation | in class 2 systems | ||||||||||||
| ■PVC jacketed | |||||||||||||
| ■Tinned or bare copper wire spiral | 应用： | ||||||||||||
| ■Rated temperature:80℃.Rated voltage:30Volts | ■用于2级电路电子设备内部连线。 | ||||||||||||
| ■Passes UL VW-1&CSA FT1 vertical flamt test | Construction: | ||||||||||||
| 说明： | 构造： | ||||||||||||
| ■导体使用单股或绞线裸铜或镀锡铜。 |
Pict
|
||||||||||||
| ■PVC绝缘 | |||||||||||||
| ■PVC被覆 | |||||||||||||
| ■裸铜或镀锡铜丝，缠绕屏蔽 | |||||||||||||
| ■额定温度：80℃额定电压：30Volts | |||||||||||||
| ■可通过UL VW-1 及 CSA FT1 ，垂直燃烧测试 | |||||||||||||
| UL Style& CSA Type |
Cores 芯数 |
Conductor 导体 |
Insulation Thickness 绝缘厚度 |
Nom.Dia |
Spiral shield 缠绕隔离 |
Jacket Thickness 被覆厚度 |
Overall Dimeter 完成外径 |
Conductor Resistance at 20℃导体电阻 |
|||||
| 线号 | 线数/线径 | ||||||||||||
| AWG | No/mm | mm | mm | NO/mm | mm | mm | Ω/KM | ||||||
|
UL2851 CSA （Stranded) 绞线 |
2C | 30 | 7/0.102 | 0.23 | 0.75 | 41/0.1 | 0.35 | 2.50 | 381.00 | ||||
| 28 | 7/0.127 | 0.26 | 0.90 | 46/0.1 | 0.35 | 2.80 | 239.00 | ||||||
| 26 | 7/0.16 | 0.26 | 1.00 | 54/0.1 | 0.35 | 3.00 | 150.00 | ||||||
| 24 | 11/0.16 | 0.26 | 1.15 | 62/0.1 | 0.35 | 3.20 | 94.20 | ||||||
| 22 | 17/0.16 | 0.26 | 1.30 | 62/0.12 | 0.35 | 3.50 | 59.40 | ||||||
| 20 | 21/0.178 | 0.26 | 1.50 | 72/0.12 | 0.35 | 4.00 | 36.70 | ||||||
| 18 | 34/0.178 | 0.26 | 1.70 | 82/0.12 | 0.35 | 4.40 | 23.20 | ||||||
|
UL2851 CSA （Stranded) 绞线 |
3C | 30 | 7/0.102 | 0.23 | 0.75 | 46/0.1 | 0.35 | 2.60 | 381.00 | ||||
| 28 | 7/0.127 | 0.26 | 0.90 | 53/0.1 | 0.35 | 3.10 | 239.00 | ||||||
| 26 | 7/0.16 | 0.26 | 1.00 | 62/0.1 | 0.35 | 3.10 | 150.00 | ||||||
| 24 | 11/0.16 | 0.26 | 1.15 | 69/0.1 | 0.35 | 3.40 | 94.20 | ||||||
| 22 | 17/0.16 | 0.26 | 1.30 | 72/0.12 | 0.35 | 3.70 | 59.40 | ||||||
| 20 | 21/0.178 | 0.26 | 1.50 | 82/0.12 | 0.35 | ||||||||
